The Silicon Behind the Intelligence

How NVIDIA turned gaming chips into the foundation of the AI revolution

Here’s something wild: the chips rendering explosions in video games are now teaching computers to write poetry, diagnose diseases, and engage in philosophical debates. NVIDIA’s GPUs, originally built to make pixels move faster, have become the indispensable foundation for training the large language models reshaping our world.

But this wasn’t inevitable. Graphics cards weren’t designed with transformers and attention mechanisms in mind. The journey from gaming to generative AI required both architectural evolution and a fundamental reimagining of what these chips could do.

This isn’t just about faster processors. It’s about a complete stack—hardware, software, algorithms, and engineering—optimized down to the transistor level for one purpose: turning oceans of text into statistical models that can predict what comes next. The process diagram in the companion artifact maps that entire journey. Keep it handy as we go deep.

The Complete Picture: A Visual Journey

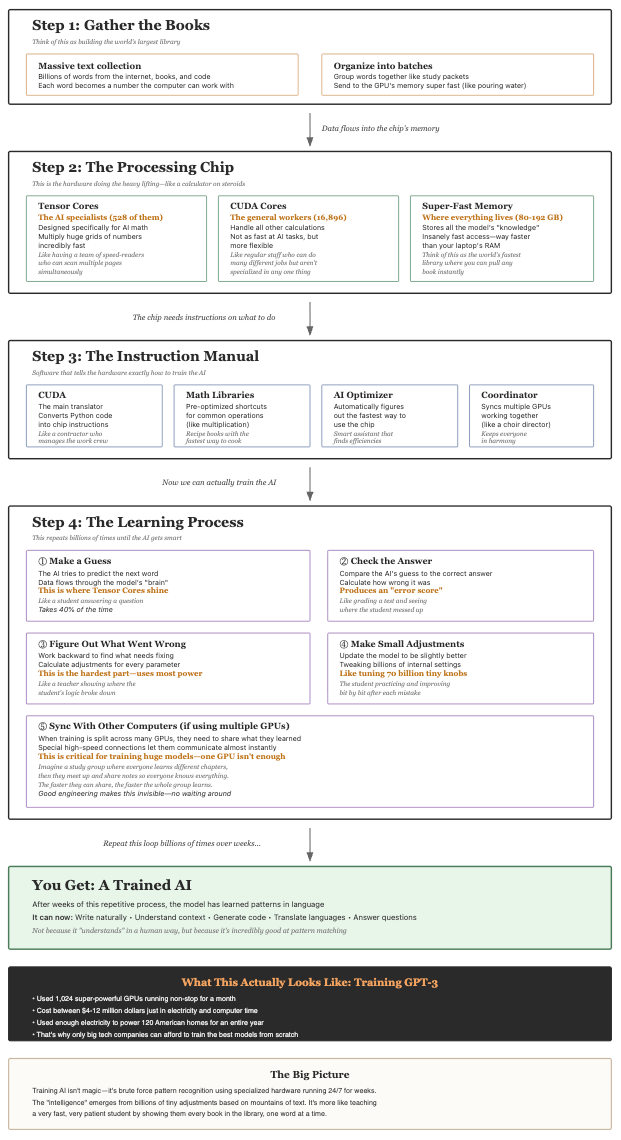

Before diving into the details, reference the comprehensive process diagram in the other artifact. It maps the entire journey from raw training data to a functioning language model—every stage, every transformation, every bottleneck. The arrows aren’t just connections; they tell you exactly what’s happening at each step. We’ll walk through each stage in detail, but that diagram is your roadmap. (Right-click to save it as a PNG—you’ll want to reference it.)

The Parallel Processing Paradigm

CPUs are sequential thinkers—brilliant at complex logic, terrible at doing thousands of simple things simultaneously. GPUs took the opposite bet. Where a high-end CPU might have 16-32 cores, an NVIDIA H100 packs 16,896 CUDA cores and 528 specialized Tensor Cores. That’s not just more cores; it’s a completely different philosophy about computation.

Training a large language model means performing trillions of matrix multiplications. Each layer in a transformer—and models like GPT-4 or Llama have dozens of them—requires massive parallel operations on enormous matrices. A 70-billion parameter model needs to store and manipulate 140 gigabytes of data just for the weights, before you even consider activations, gradients, and optimizer states.

CPUs would choke on this. GPUs thrive on it.

From CUDA Cores to Tensor Cores: Specialization Wins

Stage 2 of the diagram shows the hardware layer where the real magic happens—but understanding why it matters requires some history.

CUDA cores are the workhorses—flexible, general-purpose processors that handle 32-bit floating point operations. They’ve been around since 2006, turning GPUs into programmable compute engines beyond just graphics. CUDA (Compute Unified Device Architecture) gave developers direct access to this parallel processing power, and everything from physics simulations to molecular dynamics modeling followed.

Then NVIDIA did something clever. They noticed that deep learning doesn’t need full 32-bit precision for everything. The Volta architecture in 2017 introduced Tensor Cores—specialized units that multiply 4×4 matrices in a single clock cycle using 16-bit floating point inputs, then accumulate the results in 32-bit precision. This “mixed precision” approach delivers massive speedups without sacrificing model accuracy.

The latest H100 and B200 GPUs push this further with FP8 (8-bit floating point) and even FP4 support. Each Tensor Core can now execute 256 FP8 operations per clock cycle. When you multiply that across hundreds of cores running at over 1.8 GHz, you get performance measured in petaflops—a thousand trillion operations per second.

The numbers are almost absurd. An H100 achieves roughly 4,000 teraflops of FP8 performance, while the B200 promises to roughly double that. To put it in perspective: what took a week to train in 2020 might now finish in a day.

Memory: The Real Bottleneck

Raw compute means nothing if you can’t feed data to those cores fast enough. Modern training GPUs pack 80-192GB of HBM3 (High Bandwidth Memory) that can transfer up to 3.35 terabytes per second. That’s the entire Game of Thrones TV series (in 4K) flowing through your GPU every second—continuously.

LLMs are memory-bound in ways that would make a decade-old GPU architect weep. A 175-billion parameter model like GPT-3 needs around 700GB just to hold the model weights in mixed precision. You can’t fit that on one GPU. You need multiple cards working in concert, which brings us to the interconnect problem.

The Fabric That Binds: NVLink and Beyond

Training massive models requires distributing work across dozens or hundreds of GPUs. Regular PCIe connections would create catastrophic bottlenecks. NVIDIA’s NVLink 5.0 pushes 1.8 TB/s between GPUs—roughly 14× faster than PCIe 5.0. That’s essential when you’re constantly shuffling activations, gradients, and intermediate results between cards.

But even NVLink isn’t enough for the largest models. Recent work training 340-billion parameter models spans multiple data centers thousands of kilometers apart, requiring sophisticated protocols to hide network latency behind computation. The software coordination here is as impressive as the hardware.

The Software Stack: Where Hardware Meets Algorithms

None of this raw power matters without software that knows how to use it. Stage 3 in the diagram shows the critical middleware layer—NVIDIA’s real moat isn’t just chips, it’s the ecosystem:

CUDA provides the foundation—a parallel computing platform that lets developers write C++ code that runs on GPUs. It handles memory management, thread scheduling across thousands of cores, and the gnarly details of coordinating parallel execution. Without CUDA, you’re back to writing assembly for every chip generation.

cuBLAS and cuDNN are optimized libraries for linear algebra and deep neural networks. They’re painstakingly tuned to squeeze maximum performance from each GPU architecture. When PyTorch or TensorFlow runs a matrix multiplication, it’s calling these libraries.

Transformer Engine is newer and more specialized—built specifically for attention mechanisms and the operations LLMs need. It automatically uses FP8 where beneficial and FP16 or FP32 where necessary, dynamically adjusting precision throughout training.

NCCL (NVIDIA Collective Communications Library) handles multi-GPU coordination, implementing the complex choreography required when gradients need aggregating across dozens of GPUs during each training step.

The frameworks we actually write code in—PyTorch, TensorFlow, JAX—sit atop this stack. They translate high-level Python into these optimized CUDA operations, making it possible to train a billion-parameter model without manually writing GPU kernels.

Parallelism: Divide and Conquer at Scale

You can’t just throw more GPUs at a problem and expect linear speedups. Training at scale requires carefully orchestrating three types of parallelism:

Data parallelism is simplest: copy the model to each GPU, give each one different training examples, then average the gradients. It works great until your model is too large to fit on one GPU.

Tensor parallelism splits individual layers across GPUs. That massive 16,384 × 16,384 matrix in your model’s feed-forward layer? Split it into chunks, compute each chunk on a different GPU, then recombine the results. The math still works, but now you need tight coordination between GPUs.

Pipeline parallelism divides the model by depth—early layers on some GPUs, later layers on others. Data flows through this pipeline like an assembly line. Achieving 57.5% hardware efficiency training a 175B parameter model requires carefully balancing these strategies.

The cutting-edge approach combines all three, automatically partitioning models in ways that humans wouldn’t think of. Frameworks like Alpa on Ray can find optimal strategies without manual tuning, which matters when you’re burning through $1,000+ of GPU time per hour.

The Training Loop: Where It All Comes Together

Look at Stage 4 in the process diagram—this is where months of engineering and billions of dollars in hardware converge into a repeating cycle. Training an LLM is conceptually straightforward but computationally staggering:

Forward Pass (40% of compute time): Load a batch of tokenized text into GPU memory and multiply your way through dozens of transformer layers. Each attention mechanism involves three massive matrix operations (Q·K^T·V), and each feed-forward network might expand dimensions from 4,096 to 16,384 and back. This is where Tensor Cores earn their keep. But here’s the catch—you’re constantly reading from memory, making this phase memory-bound rather than compute-bound.

Loss Calculation (5% of time): Compare the model’s predictions against the actual next tokens. For a vocabulary of 50,000-100,000 tokens, you’re computing cross-entropy loss across every possible option. Surprisingly cheap relative to everything else.

Backward Pass (50% of compute time): This is the monster. Propagate gradients backward through every layer using the chain rule. You’re essentially doing the forward pass in reverse, but computing derivatives at each step. The math requires twice the memory and compute of the forward pass. Tensor Cores run at peak utilization here—this is compute-bound, and it’s where training lives or dies.

Optimizer Step (5% of time): Update all 70+ billion parameters based on the gradients. Modern optimizers like AdamW maintain momentum and variance statistics for each parameter, meaning you’re touching 3× the memory you’d expect. For a 70B parameter model in 16-bit precision, that’s 140GB of pure updates hitting memory bandwidth limits.

Multi-GPU Synchronization (hidden in overlap): If you’re training across multiple GPUs—and for large models, you must—gradients need aggregating via NCCL’s AllReduce operation. NVLink’s 1.8 TB/s between GPUs makes this feasible, but the choreography is complex. Clever overlapping techniques hide communication behind computation so it doesn’t become a bottleneck.

Repeat this loop several trillion times over weeks of continuous training. Modern training runs achieve around 179 teraflops per GPU—not the theoretical 4,000 teraflops peak, but a respectable 57% hardware utilization when you account for all the coordination overhead, memory transfers, and inevitable inefficiencies.

The Economics: Why This Matters

Training GPT-4 reportedly cost over $100 million in compute alone. Look at the performance stats box at the bottom of the diagram—training GPT-3 scale models requires 1,024+ GPUs running continuously for a month, consuming 1,287 megawatt-hours of electricity. That’s enough to power 120 US homes for a year, producing 552 tons of CO₂.

The infrastructure requirements are staggering—you need not just GPUs but the cooling, power delivery, and networking to support them. A single H100 draws 700 watts; a rack full of them needs a small power plant.

This creates concentration of power. Only a handful of companies can afford to train frontier models from scratch. The hyperscalers—Microsoft, Google, Meta—are building AI-specific data centers with hundreds of thousands of GPUs. NVIDIA’s roadmap suggests future systems coordinating over 500,000 GPUs across multiple facilities.

But there’s a countertrend: inference is getting cheaper, and smaller models are getting surprisingly capable. The same H100 that trains a massive model can serve thousands of inference requests per second. Consumer GPUs like the RTX 4090 can run 7-13 billion parameter models locally, enabling privacy-preserving AI without cloud dependencies.

What’s Next?

The compute scaling that powered progress from GPT-2 to GPT-4 may be hitting economic limits. Each order-of-magnitude increase in model size costs 10× more to train, and we’re approaching the point where even tech giants blink at the price tag.

A note on cryptocurrency: While GPUs do power some cryptocurrency operations (particularly Ethereum before its proof-of-stake transition), crypto mining uses different computational patterns than LLM training. Mining involves repetitive hashing operations optimized for ASIC chips, while AI training requires the massive parallel matrix multiplications that Tensor Cores excel at. Modern NVIDIA GPUs are specifically optimized for AI workloads—the features that make them extraordinary for training (Tensor Cores, Transformer Engine, FP8 precision) provide minimal benefit for cryptocurrency mining. The AI story is where the hardware innovation is concentrated.

The next frontier might not be bigger models but smarter training. Techniques like mixture of experts, where only parts of the model activate for each input, promise to maintain capability while reducing compute. Quantization keeps pushing lower—FP4 today, maybe FP2 tomorrow. Better algorithms can reduce the number of training steps needed.

But here’s the thing: every efficiency improvement just enables the next scaling push. When training gets 2× cheaper, someone will build a model 2× larger. This pattern has held since the beginning.

NVIDIA’s dominance isn’t just about making fast chips. It’s the software ecosystem, the years of optimization, the network effects of being the platform everyone builds on. AMD and Intel are trying to catch up, but they’re not just competing on transistor counts—they’re fighting against a mature stack that spans from low-level CUDA kernels to high-level framework integrations.

The chips rendering your video games learned a new trick: thinking. Or at least, doing a very convincing impression of it. And that transformation—from graphics to intelligence—might be the most important hardware story of our time.
